Wing Turner

KCE series

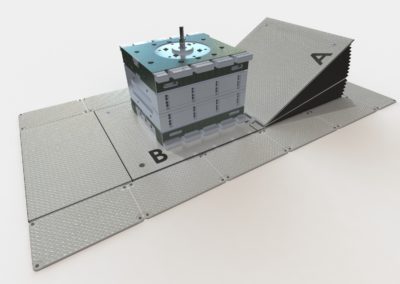

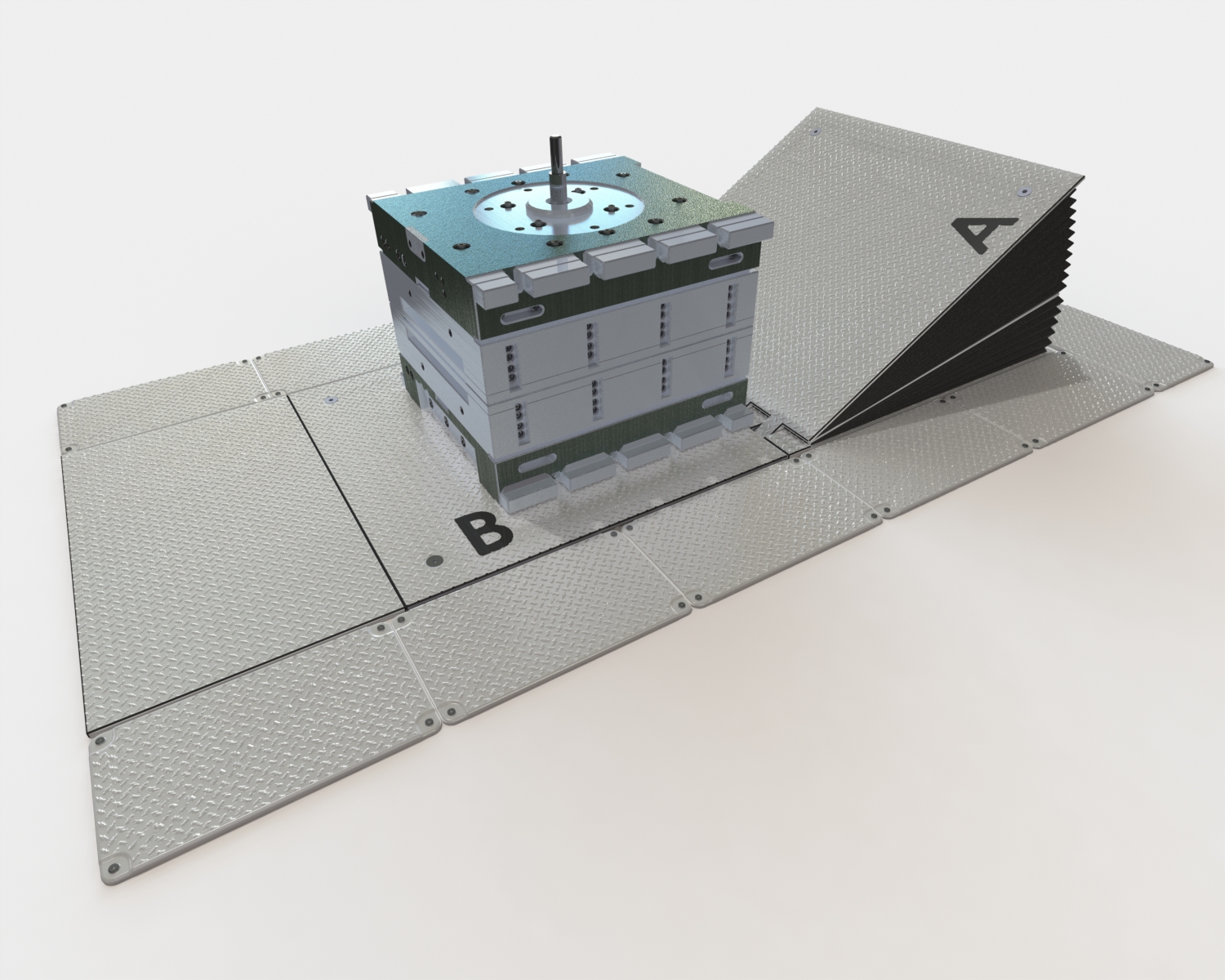

The device is designed for safe turning of the mold by 90 °. The device allows you to turn molds weighing up to 40 tons. The whole system can be built into the floor. In this case, it saves your space as much as possible.

This turner is driven by a hydraulic unit with its own oil circulation.              The hydraulic unit is driven by an electric motor.

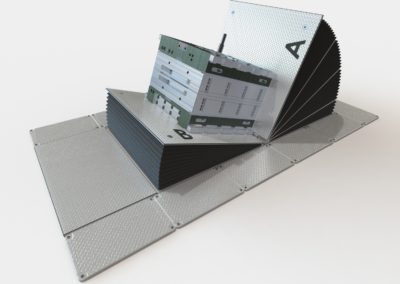

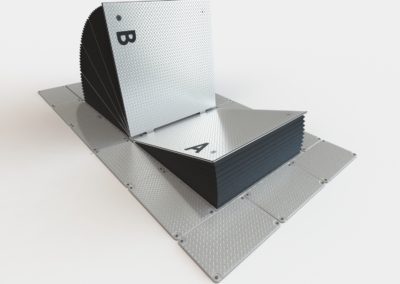

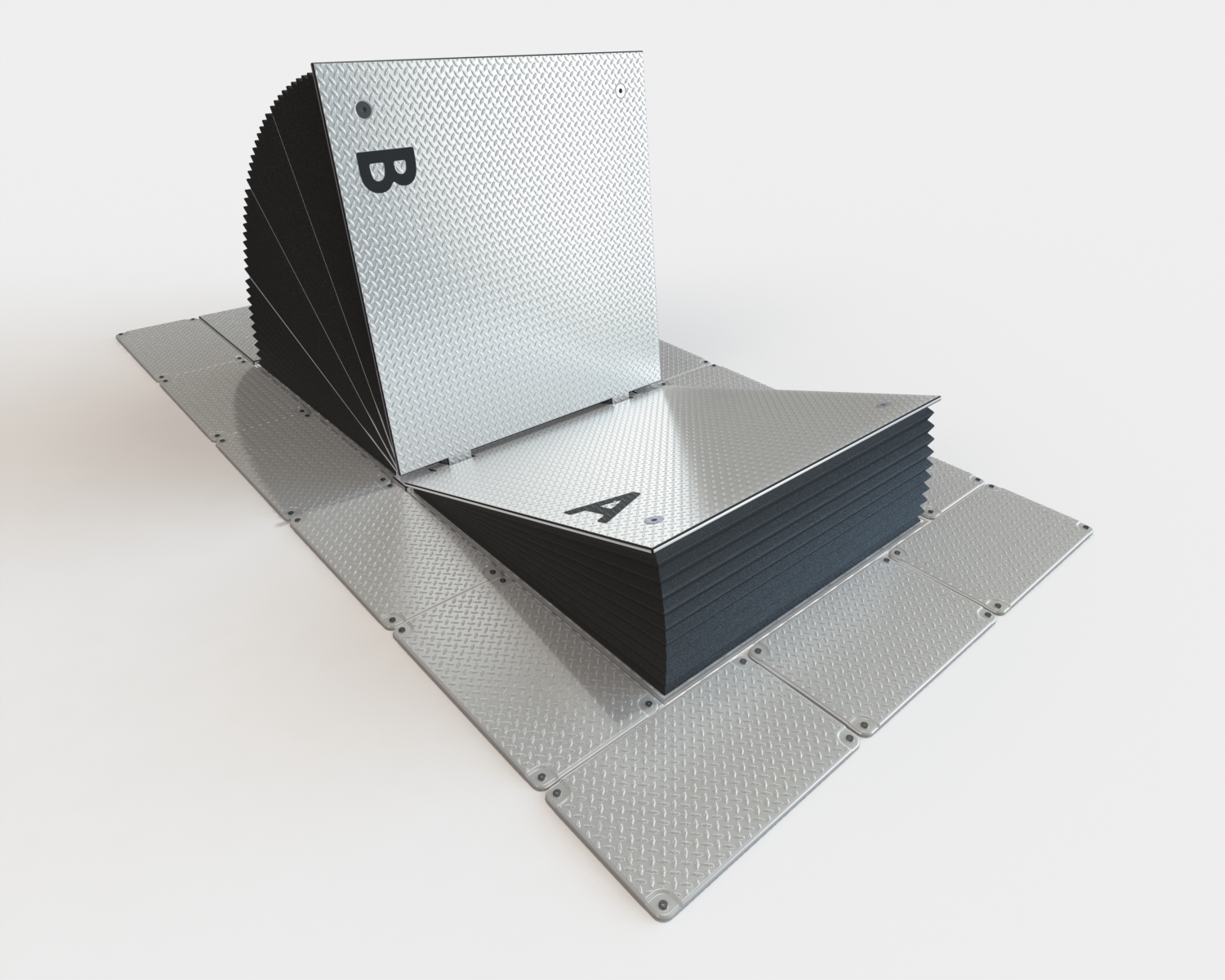

The principle of rotation of the molds consists in a complex hydraulic system driven by its own electric motor. Thanks to the possibility of aligning the construction of the turner into the plane with the floor, it is possible to easily manipulate the molds without the use of cranes by means of mobile handling means. The stable and spacious construction allows the turning of molds with a load capacity of up to 40 tons, while the mold is still flat, so it is easily accessible. Another advantage is the possibility to use the working surface of this turner for service work on the mold.


Features / Benefits

  • accessibility

  • compact flat design

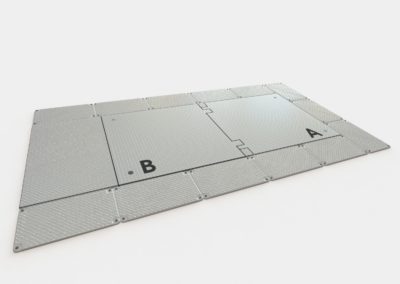

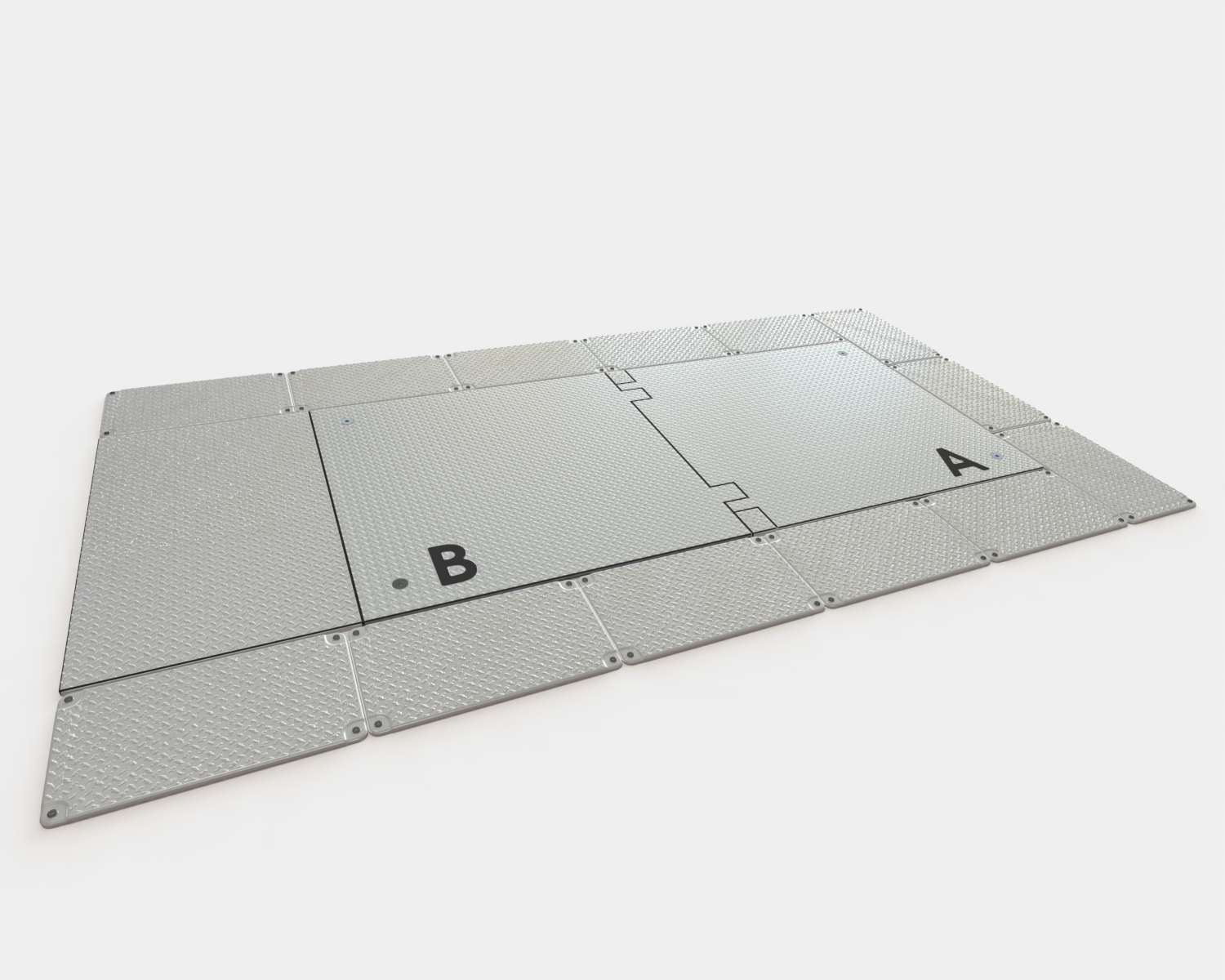

  • the whole system can be built into the floor

  • the type with a load capacity of 40 tons,  is only 450 mm high

  • space and operating cost savings

  • stabilization mechanism

  • simple control

  • efficient use of space

  • easy handling of the entire device

  • low construction

  • high load capacity

  • fast rotation process

  • there is no need for a crane during the rotation process

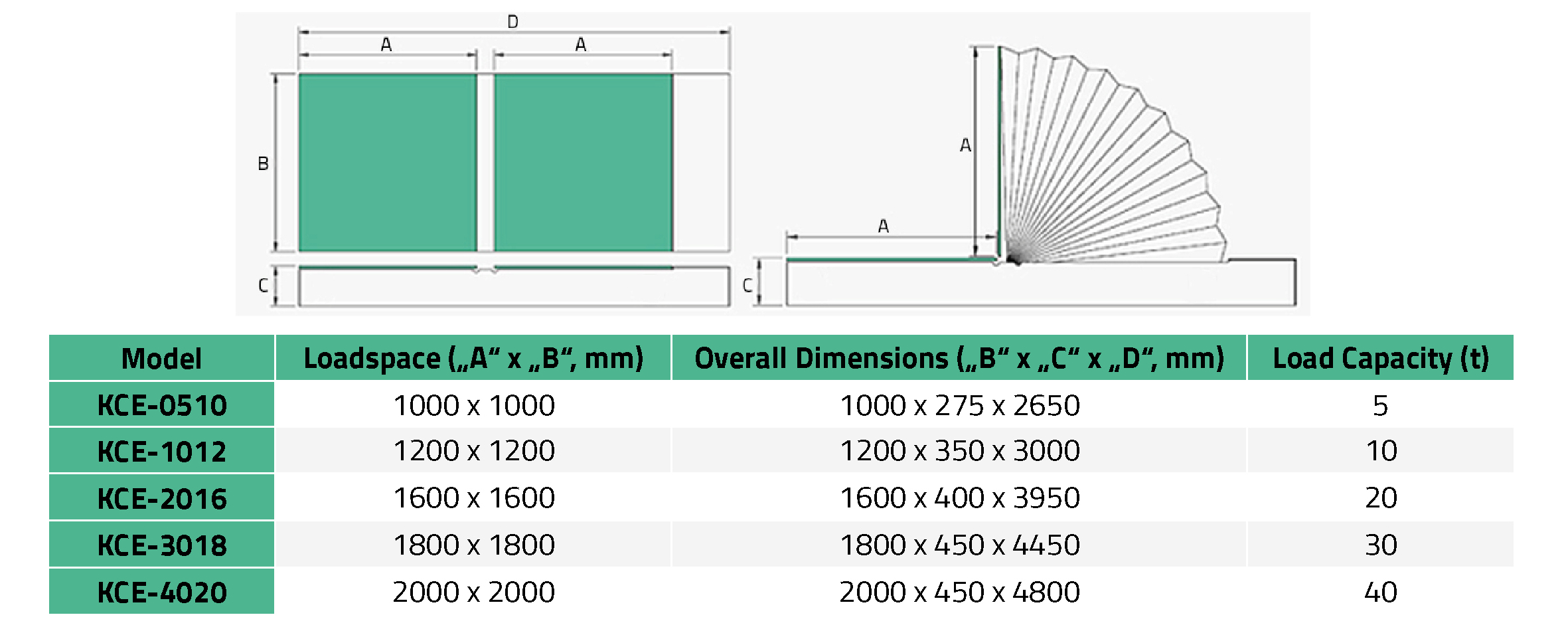

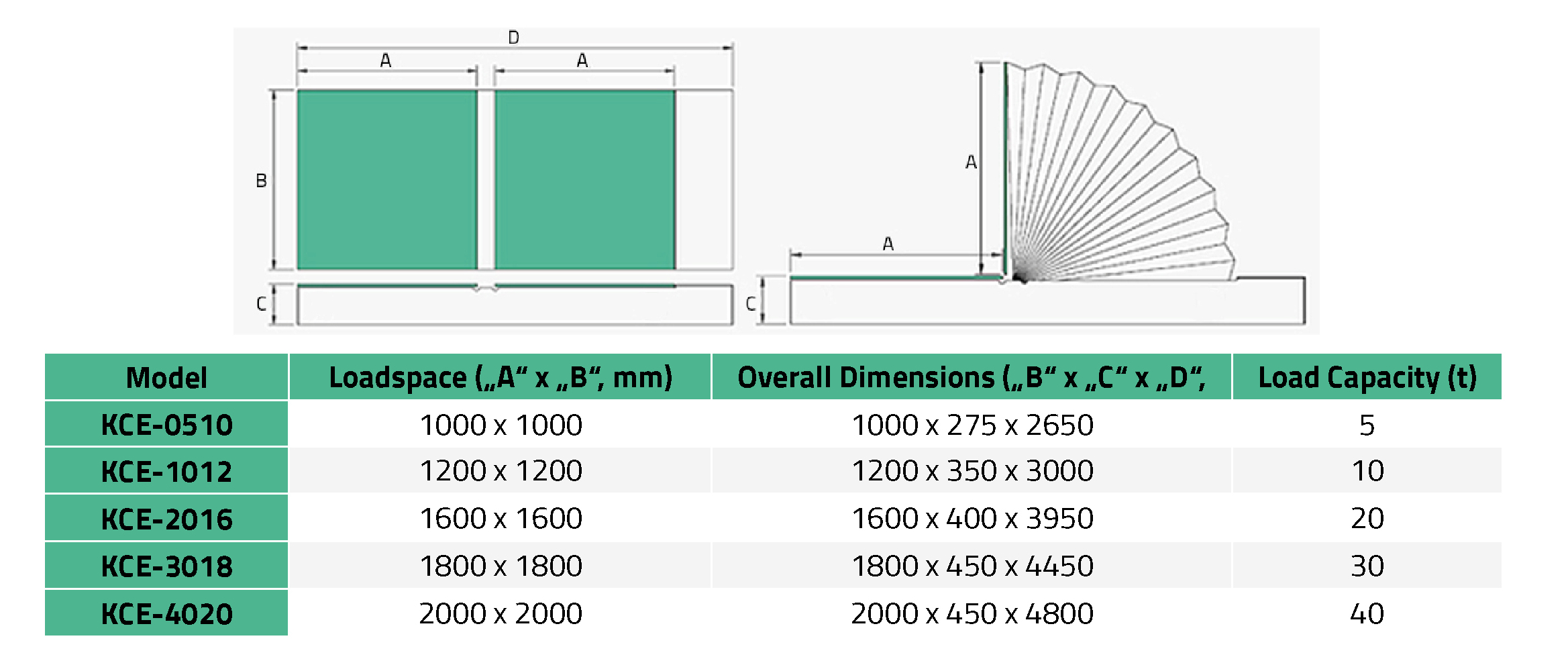

Technical Parameters

Time savings

Thanks to the simple and easy handling of molds, you will save a lot of time. Operator training is also easy.

High Stability

This turner will not fill your entire tool shop, but it does not lose its stability and is completely safe.


Not only stability but also the whole principle of turning the mold has been designed so that the user is at a safe distance during the process at all times. Thus avoiding unnecessary actions that endanger safety.
